Hot Spring Replacement Moto Massage Jet 73307

he Moto-Massage is a jet that automatically travels up and down to massage a person’s back. The mixing of air and water in a jet along with a playable spine causes the sweeping motion of the Moto-Massage. The intensity and speed of the Moto-Massage can be adjusted with the air control valve. The Moto-Massage is curved to fit the curvature of the back.

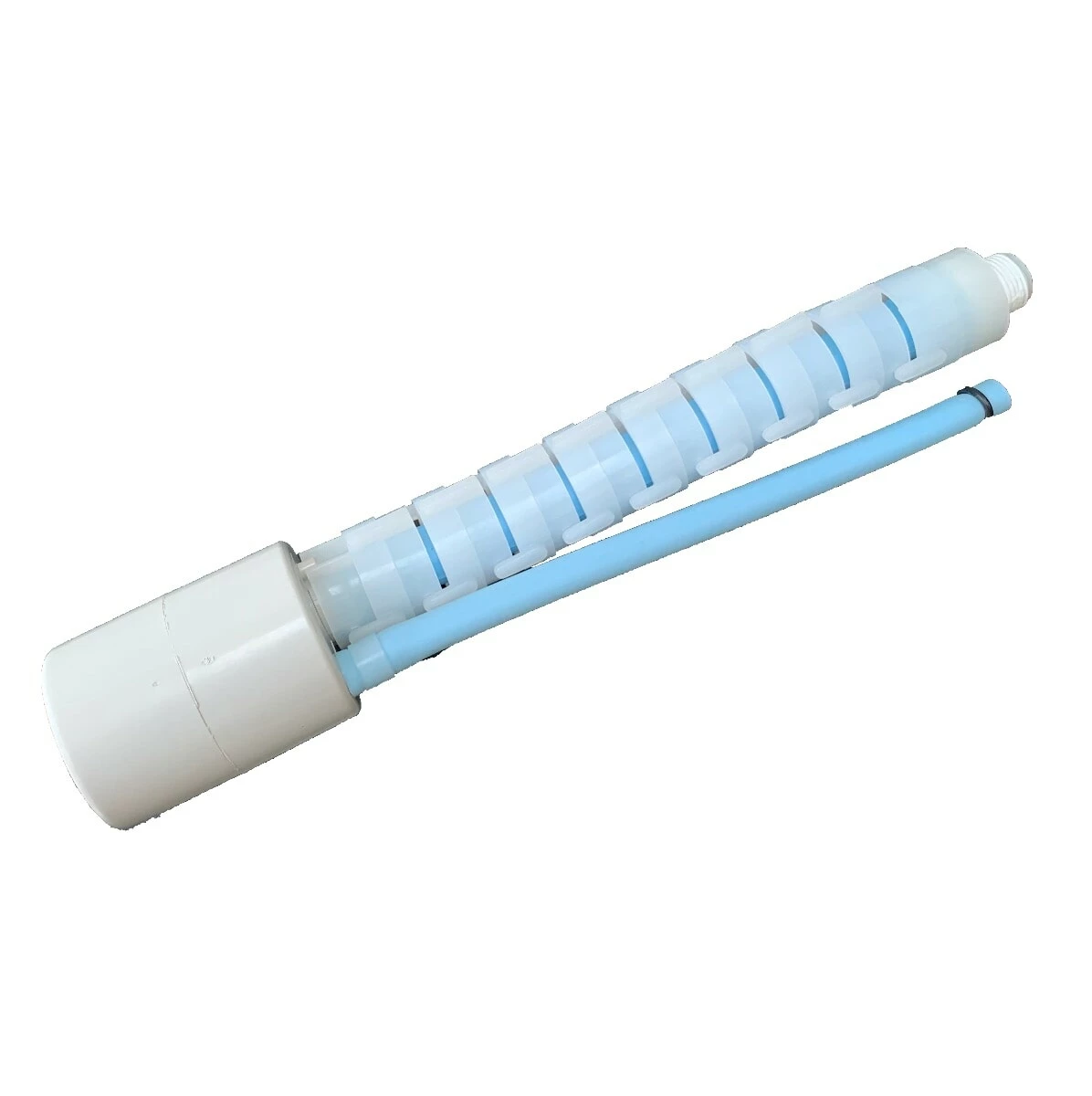

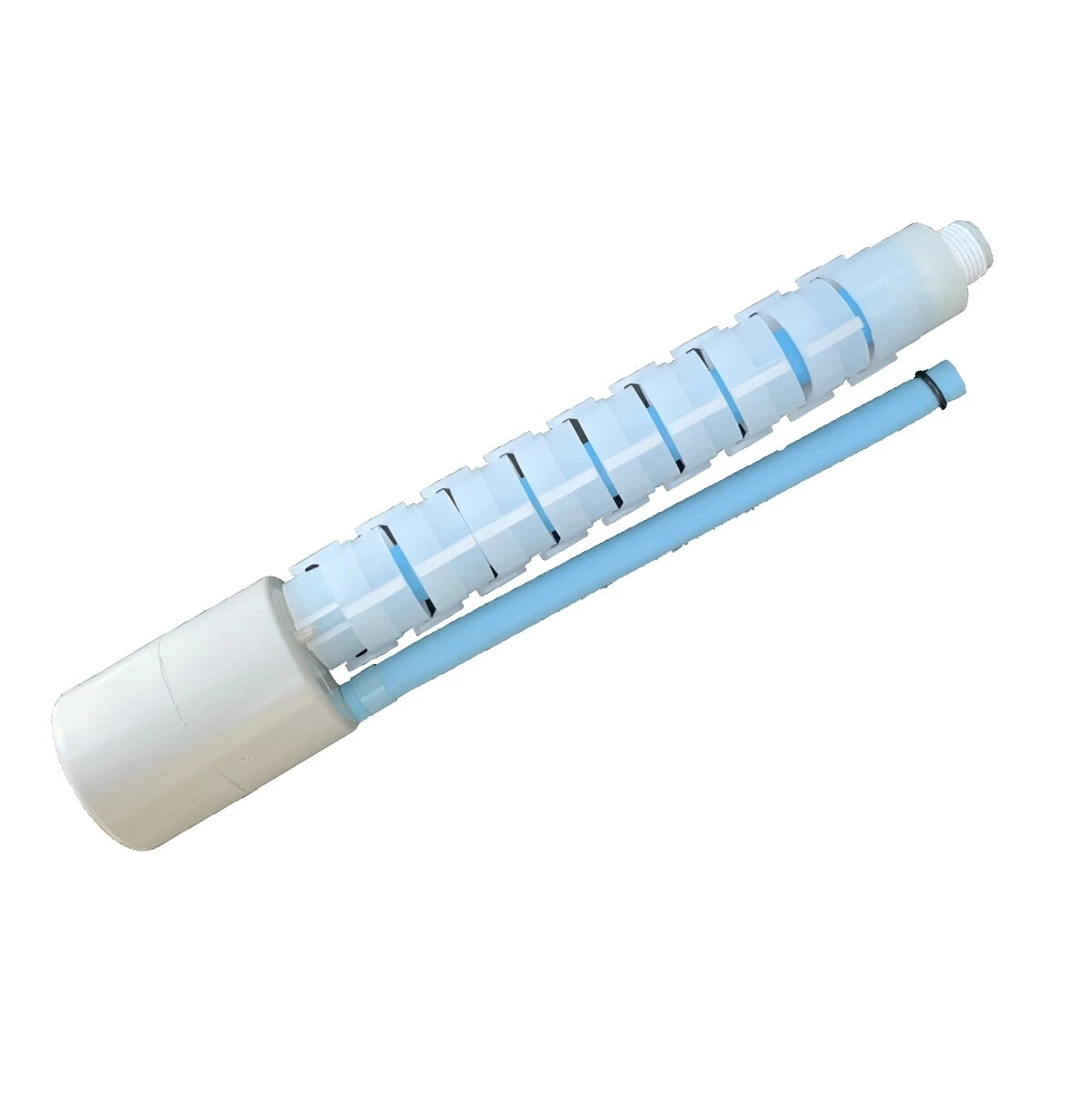

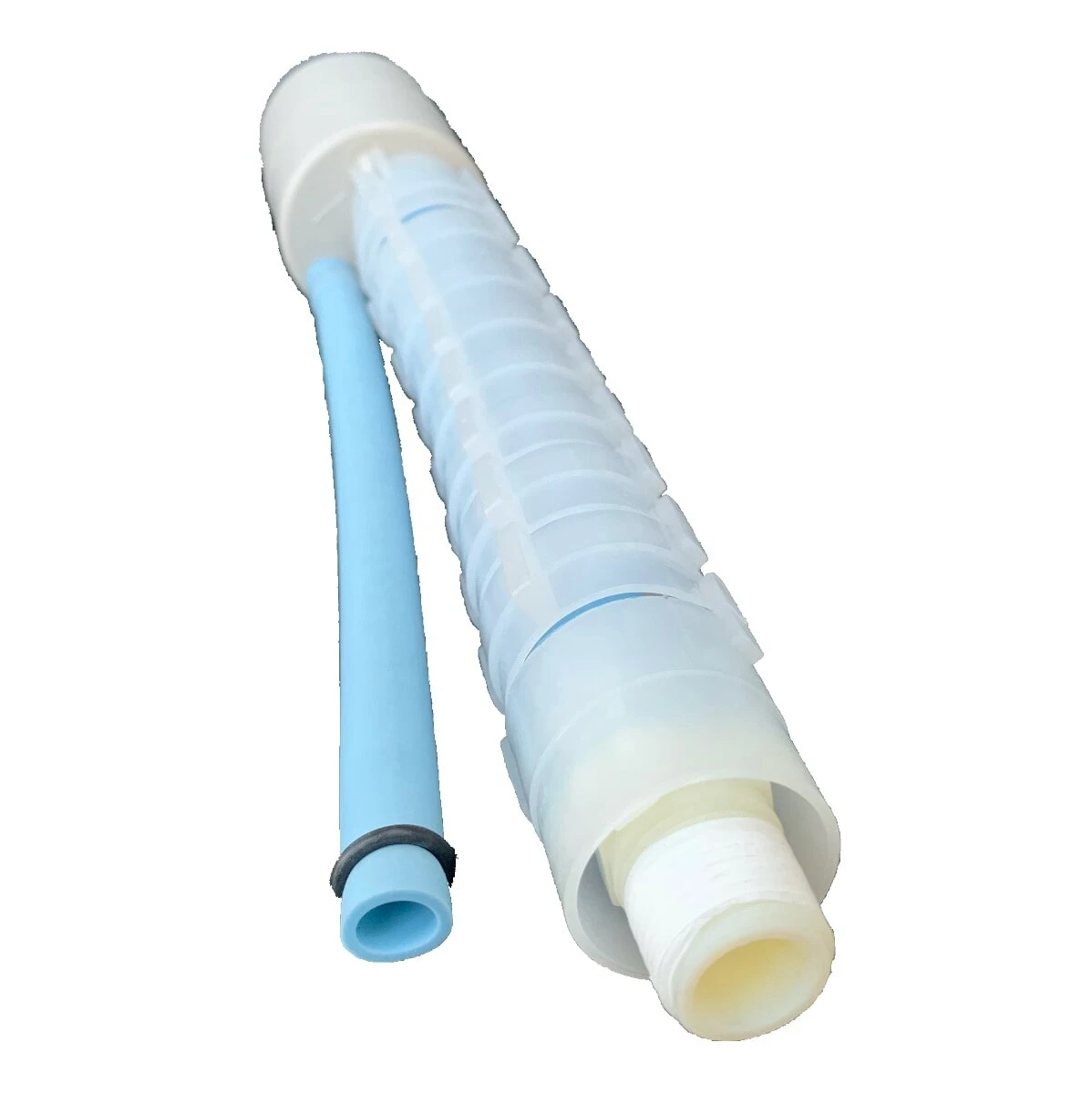

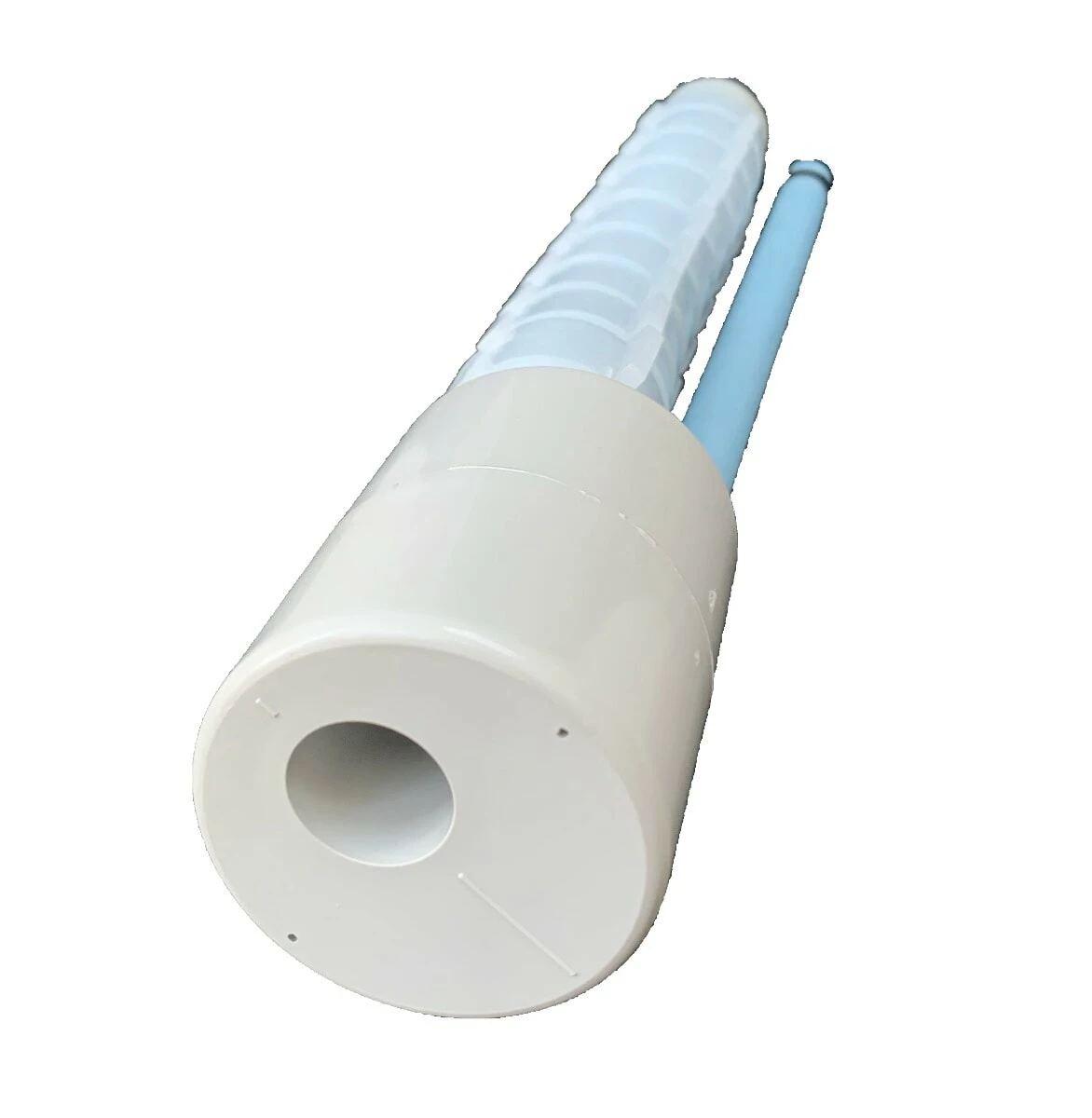

The Exclusive Hot Spring Moto-Massage Jet consists of a jet nozzle, water tube, threaded fitting, vertebrae and an air tube with o-ring. The Moto-Massage is held in-place by a special recess behind the spa shell.

This is a single Moto Massage Jet. If you have a Moto Massage DX (Double) Jet then you may require two jets and/or the Moto Massage DX Manifold/Airline.

Click Here for Diagnostics

This Moto Massage Fits The Following Models:

Make	Model	Date Range
Hot Spring	Grandee	1990-Current
Hot Spring	Vista	2004
Hot Spring	Envoy	2004-Current
Hot Spring	Vanguard	2001-Current
Hot Spring	Jetsetter	1990-Current
Hot Spring	Prodigy	1990-Current
Hot Spring	Sovereign	1990-Current
Hot Spring	Highlife	1989-1996
Hot Spring	Classic	1990-2000
Hot Spring	Landmark	1995-1996
Hot Spring	Landmark	1997-2003
Hot Spring	Summit	1995-1996
Hot Spring	Highlife ILE	2003
Hot Spring	SX	2011-Current
Hot Spring	TX	2011-Current

Diagnostics

Hot Spring Moto Massage Jet Not Going Up And Down

1. Check the air valves/diverter valves on the hot tub and ensure the Moto Massage control is ON.
2. If the above does not solve the issue. Check filters are clear as dirty filters can sometimes impact Moto Massage performance.
3. If the above does not solve the issue, visually inspect the Moto Massage jet by removing the face plate. If the blue airline pipe is perished or damaged, replace this.
4. If the airline pipe is ok, replace the moto massage jet.
